AI systems modeled with the SIPOC methodology

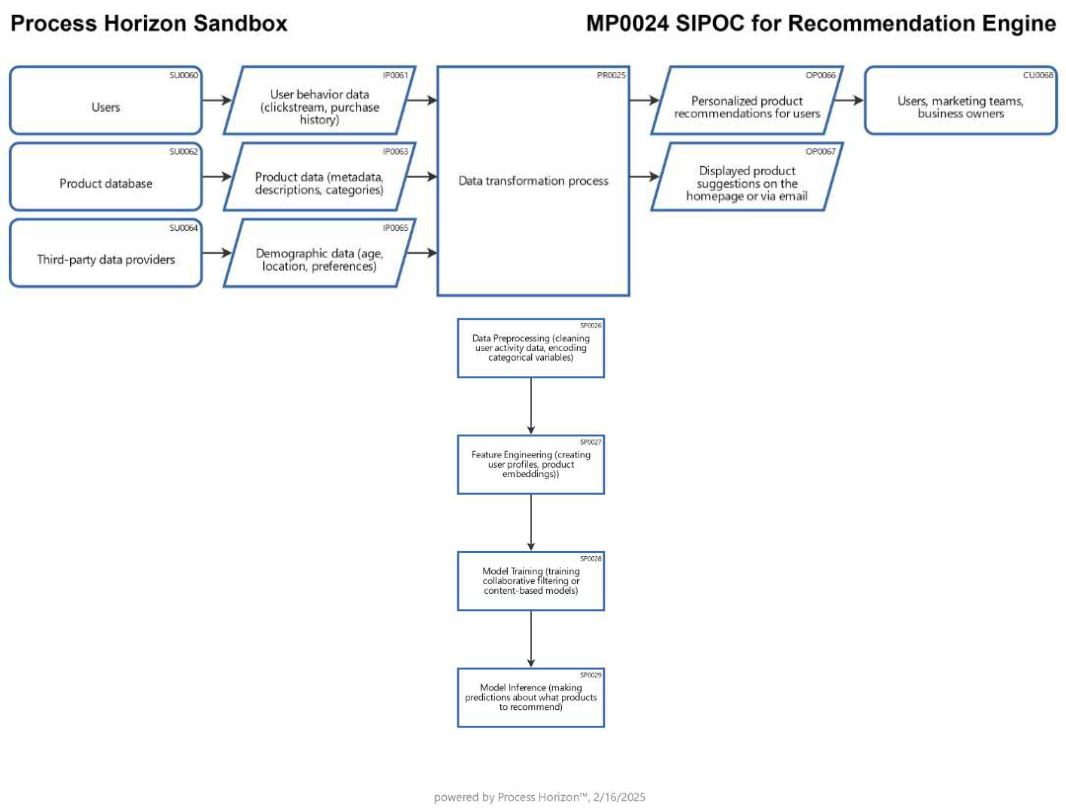

SIPOC map auto generated by the ProcessHorizon web app

How can AI solution providers leverage SIPOC to make their AI processes and AI systems more transparent and accessible to both stakeholders and the general public ?

The SIPOC methodology can be a powerful tool for mapping data flows in an AI system. When applied to AI systems, SIPOC helps visually represent and analyze the key stages in the data pipeline, identifying where the data originates, how it's processed and where it flows through the system. This provides stakeholders with a clear understanding of the Suppliers (sources of input), Inputs, Processes, Outputs & Customers (output destinations) involved in the AI system, ensuring transparency and clarity.

1. Suppliers (Where the data comes from)

Identify the sources of data and external systems that provide input to the AI system.

2. Inputs (What data is collected and processed)

Identify the data and information needed by the AI system to function.

3. Processes (How the data is processed and transformed)

Define the steps or stages in the AI system where data is transformed into insights or predictions.

4. Outputs (What results or outcomes the AI system generates)

Specify the results or predictions produced by the AI system and how they are used.

5. Customers (Who benefits or interacts with the output of the AI system)

Identify the stakeholders who will receive or interact with the output of the AI system.

Why Use SIPOC for mapping Data Flows in AI Systems ?

  • Clarifies Data Movement: SIPOC helps map the flow of data through various stages of the AI system, from initial data sources to final outputs, ensuring clarity in data management and processing.
  • Identifies Gaps: It highlights areas where data may be missing or where there are inefficiencies in the data pipeline (e.g. insufficient data preprocessing or lack of proper validation).
  • Ensures Transparency: Stakeholders can clearly see how data is handled, what transformations occur and how outputs are used, increasing trust in the AI system.
  • Facilitates Communication: By simplifying the entire system into a visual model, it becomes easier to explain the workings of the AI system to non-technical stakeholders, making it a great tool for communication between developers, business teams, and customers.
  • Improves Optimization: Understanding the flow of data and how it is processed helps optimize performance, streamline workflows, and ensure better outcomes (e.g. improved predictions, fewer biases).

The SIPOC methodology thus helps map the entire data flow of an AI system, from the initial data inputs to the final outputs, ensuring that each stage in the AI process is well-understood, managed and optimized. This approach is valuable for designing, implementing and communicating AI systems across their lifecycles.
